    Secabo TC7 SMART met Bluetooth

    € 1.570,- Wordt rechtstreeks door fabrikant verstuurd
    Secabo TC7 SMART met Bluetooth
    40cm x 50cm... Toon meer
    1 variaties
    • Bestellingen voor 15u worden dezelfde dag klaargemaakt voor verzending
    • Vanaf € 75 betalen wij jouw verzending in België!
    • Kies tussen Bpost of DPD voor je levering
    • Volg je levering via Track-and-Trace

    Productomschrijving

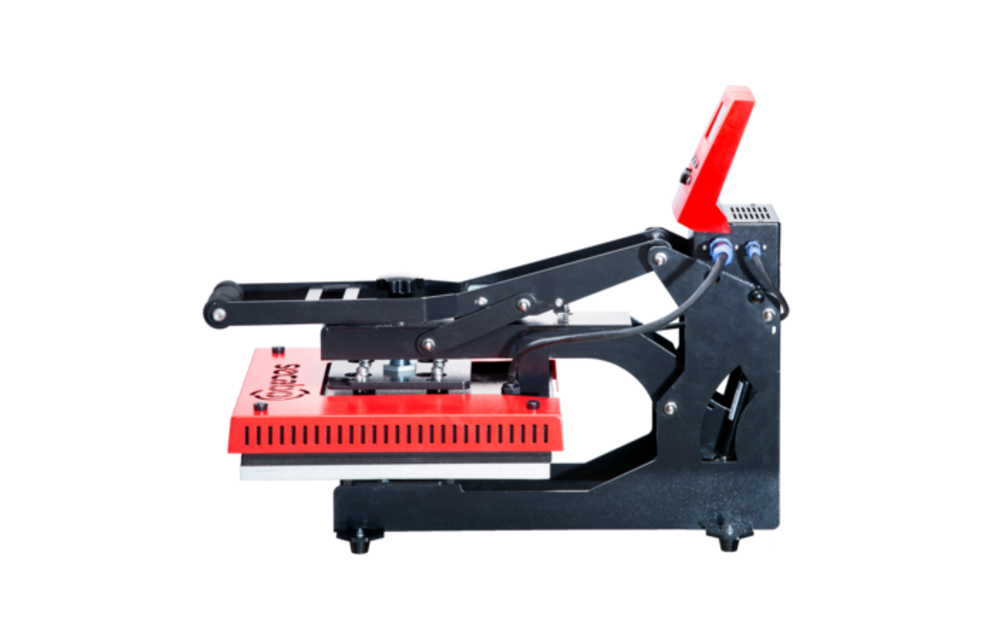

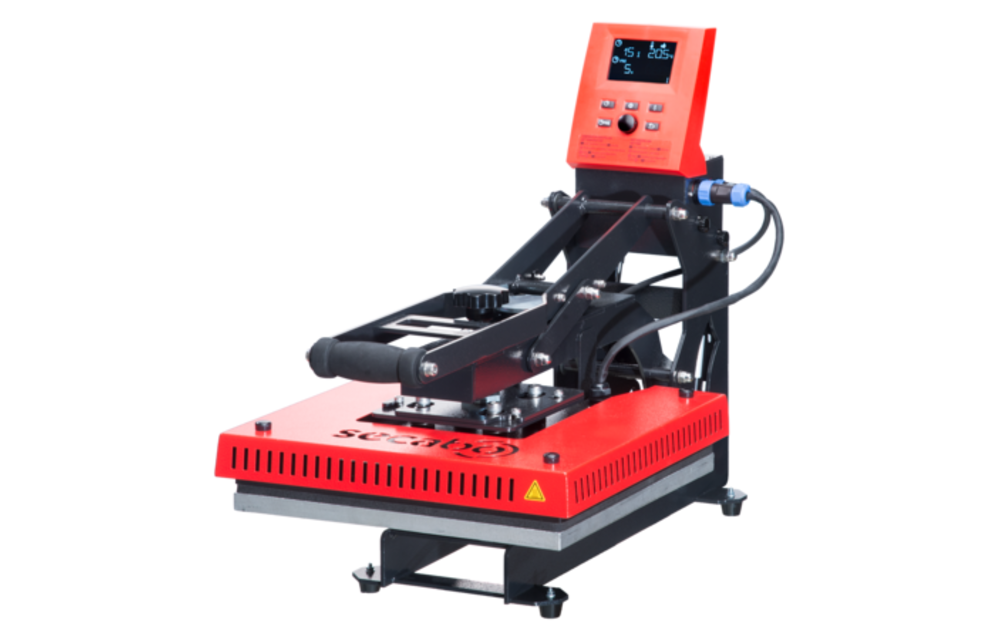

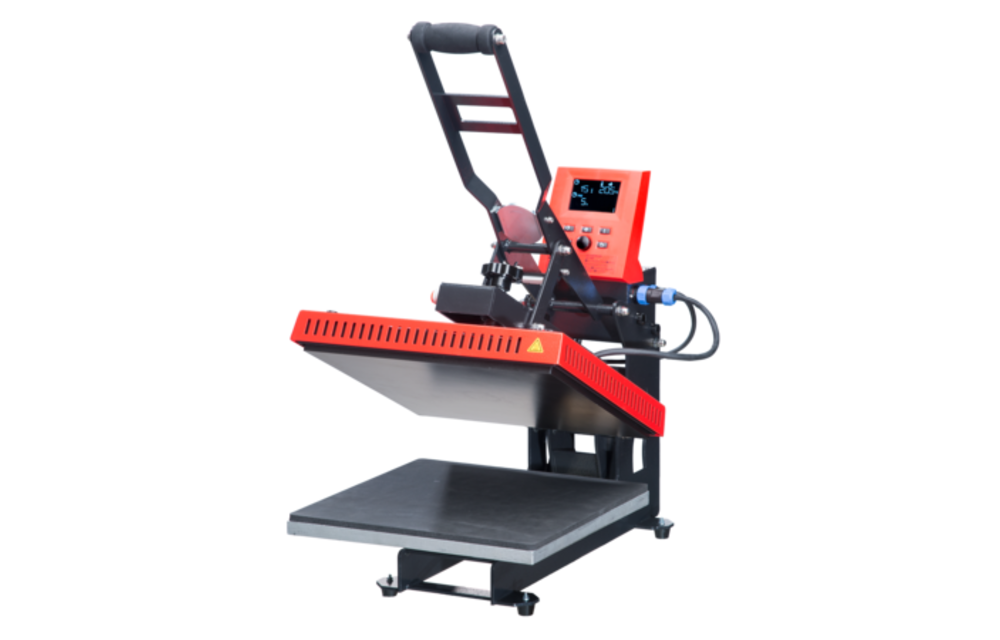

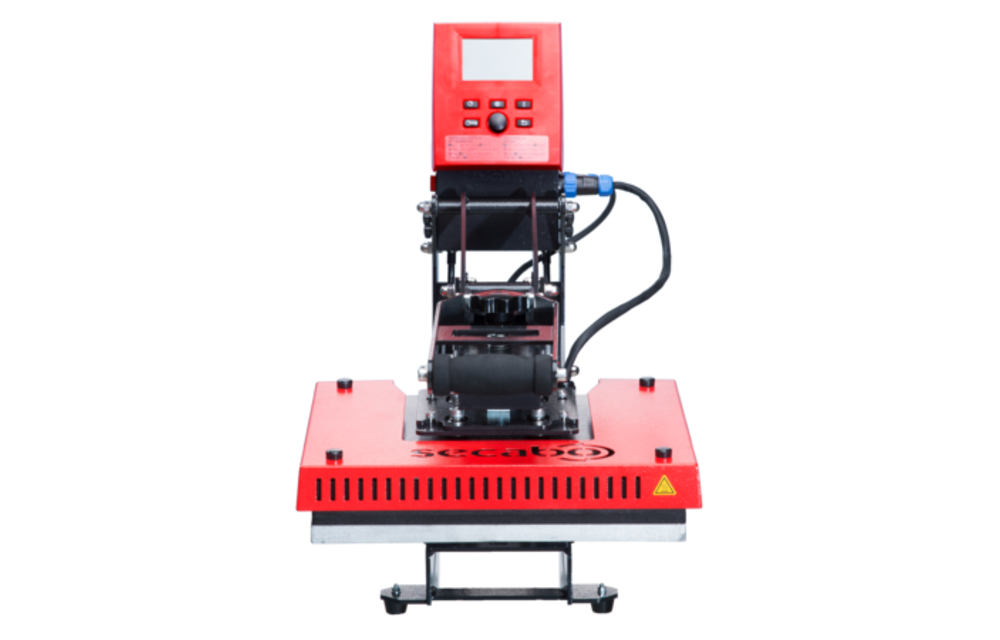

    Overview: Secabo TC7 SMART modular heat press 40cm x 50cm with Bluetooth

    With its new TC7 SMART heat press, Secabo opens up new innovative paths leading to even better performance. This latest development of the successful automatic knee-lever press Secabo TC7 introduces a world novelty to the market, which opens up a variety of new options to users: The controller of the TC7 SMART now comes equipped with a Bluetooth interface that allows for controlling the press via the free app Secabo Smart Transfer, while also providing access to a comprehensive function database. This allows users to: Simply enter the type of fabric and the transfer material and immediately retrieve the matching combinations of temperature, time and pressure. Additional features, such as the calculation of heat-up times and warning functions, make the app a valuable assistant for all common heat transfer methods. The new heat press Secabo TC7 SMART offers a work surface of 40 x 50 cm, is easy to use and robust in ongoing operation. The modular design allows for quick and easy installation of removable plates in various formats, a quick change system and a slide extension.



    Intelligent display functions and intuitive control concept

    Our SMART models are equipped with new electronics that were developed on the basis of Secabo's extensive industry know-how and are "made in Europe". In addition to known settings, such as temperature and time, the range of functions has been extended to include settings for pre-pressing, a counting function, sleep and auto-off mode, 10 memory locations for transfer parameters, and many other features. The control concept has been completely reworked to further improve press handling for the user - the new rotary push button and the large display are significant contributions to this.

    World first: Control app for precise and efficient workflow

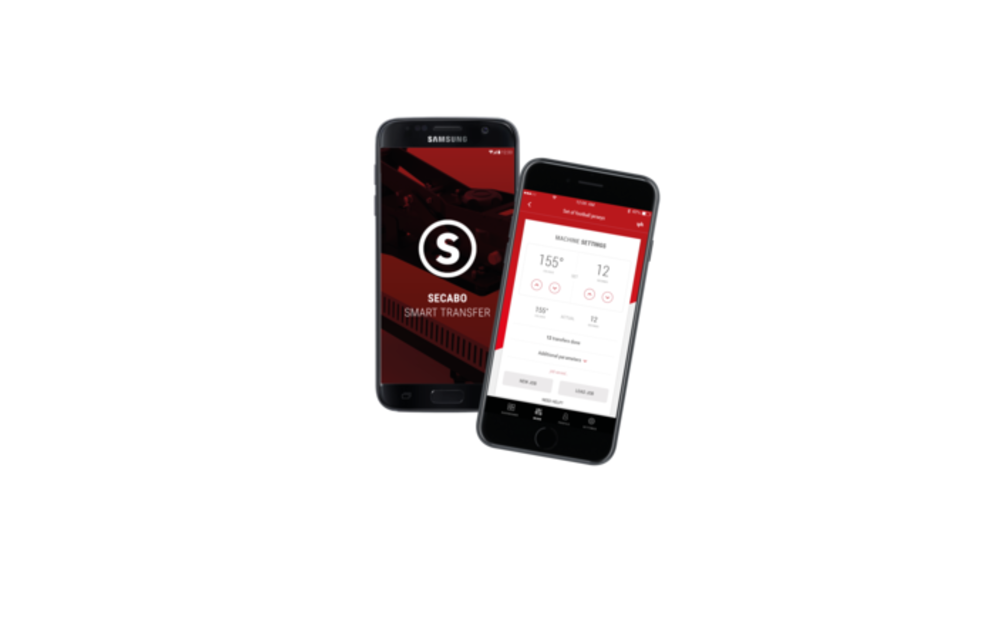

    The Secabo Smart Transfer App is a free control app for the SMART heat presses by Secabo. In addition to normal control functions, suitable transfer parameters covering many types of fabric and transfer media can be retrieved from a cloud database. In addition to time and temperature, various pressure settings can also be differentiated. The combination with small base plates and thus extremely high contact pressure achieves dramatically short transfer times, which have so far never been indicated by a manufacturer of heat presses or transfer media. Simply enter the type of fabric and the transfer material and immediately retrieve the matching combinations of temperature, time and pressure. Additional features, such as the calculation of heat-up times and warning functions, make the app a valuable assistant for all common heat transfer methods. It is a huge pool of information for laymen and professionals - the preliminarily tested transfer parameter pairings aren't merely "known" thanks to professional experience, and they can only be set and used via the app. The Secabo Smart Transfer App can also be used to control multiple SMART heat presses using a mobile device - smart phone or tablet. The saving, managing, and loading of jobs within the Secabo Smart Transfer App allows for retrieval and reproducible use of previously used transfer parameters.

    Cutting-edge press construction and mechanics

    The latest generation of the well-known TC5 and TC7 models features a new intelligent design and construction. In selecting the used components, special attention was given to high-quality materials and surfaces. Both SMART presses feature a modular design that optionally allows for quick and easy equipping with replaceable base plates of various formats, with a quick-change system and with a slide extension. The heating plate was equipped with an additional protection plate. The compact dimensions and modular design allow for easy disassembly into light packages for transport and shipping.





    Features

    Secabo Smart Transfer App

    Secabo Smart Transfer App

    The device is ready for control via the Secabo app. With the aid of this app, suitable transfer parameters can be selected for your application.

    Bluetooth interface

    Bluetooth interface

    The device can be connected and controlled via Bluetooth with a mobile device and the Secabo Smart Transfer App.

    Digital controller

    Digital controller

    Duration and temperature can easily be adjusted and monitored using the digital controller.


    Large workspace

    Large workspace

    Due to the large folding angle of 40°, the transfer objects can be aligned comfortably and precisely.

    Low hysteresis

    Low hysteresis

    A state-of-the-art controller reduces the temperature fluctuations to a minimum, thus ensuring consistently good transfer results.

    Variable work pressure

    Variable work pressure

    The work pressure is easy to adjust - in each case matching the transfer object and procedure.


    Opens automatically

    Opens automatically

    The heat press automatically opens after the set time has elapsed.

    Safe working

    Safe working

    The safety and quality of this device is constantly monitored - according to German safety standards.

    Precise temperature distribution

    Precise temperature distribution

    The high-quality heat plate ensures an exact temperature distribution over the entire heating surface.


    Replaceable plates

    Replaceable plates

    Interchangeable base plates available - also in combination with a quick-change system







    Technical Data

    Dimensions open43cm x 93cm x 74cm
    Dimensions closed43cm x 57cm x 75cm
    working area40cm x 50cm
    scope of deliveryMechanical base, heating plate and base plate, controller box, C13 power supply cable, tools, operating instructions
    pressure settingthe heating plate can be adjusted with a hand reel
    max. downforce250 g / cm ² g
    max temperature225 °C °C
    maximum time preset999 s s
    max. clam angle40 ° °
    power supplyAC voltage 230V / 50Hz - 60Hz, 2.0kW
    environment+5°C - +35°C / 30% - 70% humidity
    weight without packaging39,00 kg
    weight with package45,00 kg
    BrandSecabo

    Specificaties

    Artikelnummer
    100-109-007-15
